Product Introduction

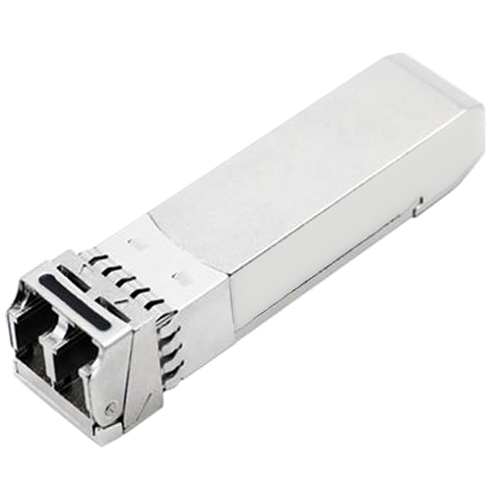

25G SFP28 series of products include SR, LR, ER, etc. This series of products adopt LC optical port, compatible with IEEE802.3by, SFF-8472 and other standards; It is featured by low power consumption, small volume, high speed and wide temperature range. It is mainly used in data center, 5G network, 25G Ethernet, fiber channel and other environments.
|
P/N |
Data Rate |
Distance |
Wavelength |
Source |
Fiber |
Output Power |
Sensitivity |
|
N-S25-F85L01 |
25Gb/s |
100m |
850nm |
PIN |
MM |
-2.5～-8.5dBm |
≦-10dBm |
|
N-S25-F31L10 |
25Gb/s |
10km |
1310nm |
DFB |
SM |
-4.3～-4.5dBm |
≦-11.3dBm |
|
N-S25-FXXL40 |
25Gb/s |
40km |
1290T/1310R |
APD |
SM |
-3.0～-3.5 dBm |
≦-16dBm |
